Width between pillars
396 cm
Stud/rail assembly
Self-drilling screws
RAL
7016
Locking system
Barrel lock
Type of lock
4 Keys
Opening system
Sliding
Assembly time
8 h
Stud thickness
1.4 mm
Amounts Section
78*47 mm
Finishing
mast
Width between pillars
396 cm
Stud/rail assembly
Self-drilling screws
RAL
7016
Locking system
Barrel lock
Type of lock
4 Keys
Opening system
Sliding
Assembly time
8 h
Stud thickness
1.4 mm
Amounts Section
78*47 mm
Finishing
mast
Sleeper Section
77*30 mm
Compatible motorization type
sliding
Thickness of the blades
1.2 mm
Operating clearance
26 mm
Blade width
--
Width
396 cm
Supplied accessories
Yes
Required pillar height
180 cm
Warranty
2 an(s)
Length of steel rail
8 m
Required discharge length
4 m
Rod assembly
Self-drilling screws
Sleeper thickness
1.2 mm
Assembly instructions
Yes
Exists by beating
Yes
Opening direction
left to right/right to left
Pattern / Design
SANTIS
Guide system
Upper guide with 4 nylon olives
Length of the tail of the sliding gate
25.4 cm
Compatible engines
Yes
Height
162.8 cm
Main material
Aluminium
Handle colour
Black
Colour
Charcoal grey
Eligibility Extended warranty 5 years
No
Recommended number of persons for assembly
2
Frame material
Aluminium
Handle material
Aluminium
Eligibility Extension of warranty 10 years
No
Type of filling
half openworked
Number of wheels
4
Wind resistance
55 km/h
Weight of package No.1
21.0 kg
Weight of package No.2
27.5 kg
Weight of package No.3
28.0 kg
Weight of package No.4
6.7 kg

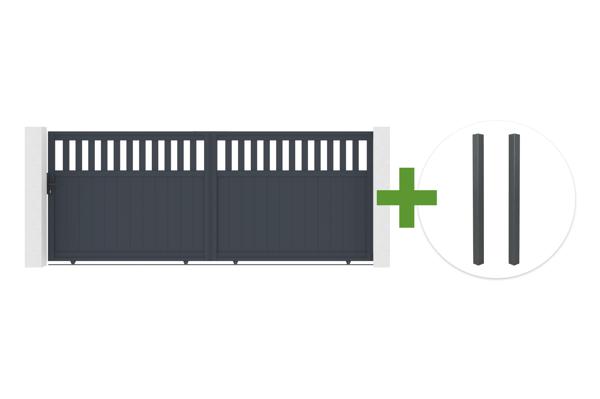

The SANTIS Driveway sliding gate, with its simple and classic design is the perfect compromise between openwork and fully boarded sliding gate.
This vertical mixed infill model will allow you to reconcile luminosity and privacy by means of a barred opening in the upper part and a shading in the lower part.
Description : Sliding gate with mixed infill, Vertical Board with Straight Top & Vertical Open Pales
Material : Aluminium
Colour : Anthracite grey (RAL 7016)
Dimensions : Width 396cm x Height 163cm
Required width with clearance : 843cm
Minimum height of pillars : 175cm
Inspired and designed in France
This Sliding Gate with mixed infill kit, to be assembled and installed by yourself, contains :
- 22 aluminium bars (Width 7.8cm)
- 24 powder-coated aluminium slats (Width 15.5cm)
- 1 top guide with 4 nylon wheels
- 7.9m aluminium guide rail
- 4 steel wheels
- 1 closes strike box
- 1 limit stop
- 1 cylinder lock
- 1 handle (Colour Black)
- 5 keys
- Finishing caps
- Screws and bolts
If you want an automatic sliding gate, you will find promotional packages consisting of a sliding gate of your choice with the appropriate sliding gate automation.
If your installation requires pillars, Casanoov offers promotional packages in the "Sliding Gate" category
These packages contain one Aluminium sliding gate of your choice, together with two aluminium posts to match the chosen dual sliding gate.
The SANTIS model is also available in other sizes.
Also available as a pedestrian or double swing gate
Driveway Gate delivered in kit form
Clear instructions, quick and easy assembly
You will find all the necessary information about this product in the technical data
It is technically possible to install your gate with an opening from the right to the left.
You will find all the information you need to change the opening direction in our installation instructions.
Our installation instructions for sliding gates have been designed to offer you two different installation methods depending on the chosen opening direction: from left to right or from right to left.
For further information, please contact our customer service via our contact form.
Download the assembly instructions (PDF)
