Locking system
Cylinder lock
Recommended number of persons for assembly
2
Height
160.7 cm
Central stop
Yes
Blade section
155*15 mm
Pattern / Design
SANTIS
Number of upper hinges
2
Assembly time
8 h
Stud thickness
1.4 mm
End stop
2
Locking system
Cylinder lock
Recommended number of persons for assembly
2
Height
160.7 cm
Central stop
Yes
Blade section
155*15 mm
Pattern / Design
SANTIS
Number of upper hinges
2
Assembly time
8 h
Stud thickness
1.4 mm
End stop
2
Operating clearance
30 mm
Finishing
mast
Thickness of the blades
1.2 mm
Sleeper Section
77*30 mm
RAL
7016
Number of lower hinges
2
Amounts Section
78*47 mm
Stud/rail assembly
Self-drilling screws
Eligibility Extension of warranty 10 years
No
Type of lock
4 Keys
Supplied accessories
Yes
Minimum pillar height
175 cm
Width
303.7 cm
Eligibility Extended warranty 5 years
No
Type of filling
half openworked
Pivoting system
Ball bearing
Compatible motorization type
With articulated arm and cylinders
Rod assembly
Self-drilling screws
Width between pillars
308.7 cm
Compatible engines
Yes
Sleeper thickness
2 mm
Top cover cap
Yes
Handle colour
Black
Warranty
2 an(s)
Opening system
Swing gate
Compatible pillar spacing
305,7 - 311,7 cm
Opening direction
Towards the house, See Technical diagram
Available in sliding
Yes
Assembly instructions
Yes
Handle material
Aluminium
Wind resistance
55 km/h
Main material
Aluminium
Colour
Charcoal grey
Frame material
Aluminium
Weight of package No.1
29.0 kg
Weight of package No.2
22.3 kg
Weight of package No.3
4.88 kg

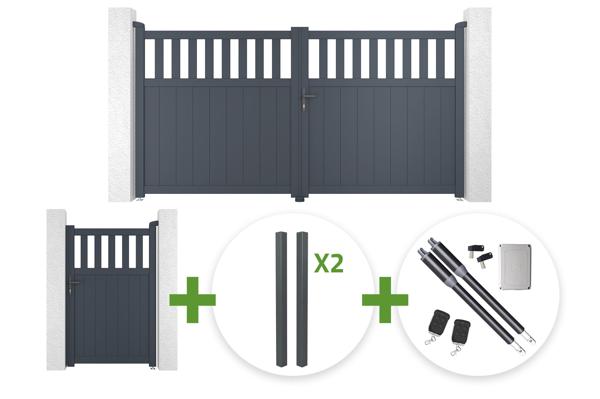

The SANTIS Driveway swing gate, with its simple and classic design is the perfect compromise between openwork and fully boarded swing gate.
This vertical mixed infill model will allow you to reconcile luminosity and privacy by means of a barred opening in the upper part and a shading in the lower part.
Description : Double swing gate with mixed infill, Vertical Board with Straight Top & Vertical Open Pales
Material : Aluminium
Colour : Anthracite grey (RAL 7016)
Dimensions : Width 304cm x Height 161cm
Required width between pillars: 309cm
Minimum height of pillars : 175cm
Inspired and designed in France
This Swing Gate with mixed infill kit, to be assembled and installed by yourself, contains :
- 16 aluminium bars (Width 7.8cm)
- 18 powder-coated aluminium slats (Width 15.5cm)
- 2 upper hinges
- 2 lower hinges
- 2 receiving stop
- 1 middle stop
- 1 cylinder lock
- 1 handle (Colour Black)
- 5 keys
- Finishing caps
- Screws and bolts
The central crosspieces of this double swing gate have been designed to be reinforced so that you can motorise it later if you wish.
You will find promotional packs offering you a set consisting of a swing gate of your choice accompanied by the appropriate gate automation.
If your installation requires pillars, Casanoov offers promotional packages in the "Swing Gate" category
These packages contain one aluminium swing gate of your choice, together with two aluminium posts to match the chosen dual swing gate.
The SANTIS model is also available in other sizes.
Also available as a pedestrian or sliding gate
Driveway Gate delivered in kit form
Clear instructions, quick and easy assembly
You will find all the necessary information about this product in the technical data
Download the assembly instructions (PDF)
