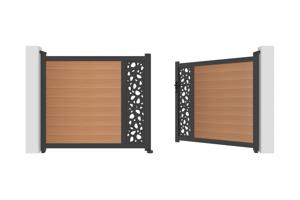

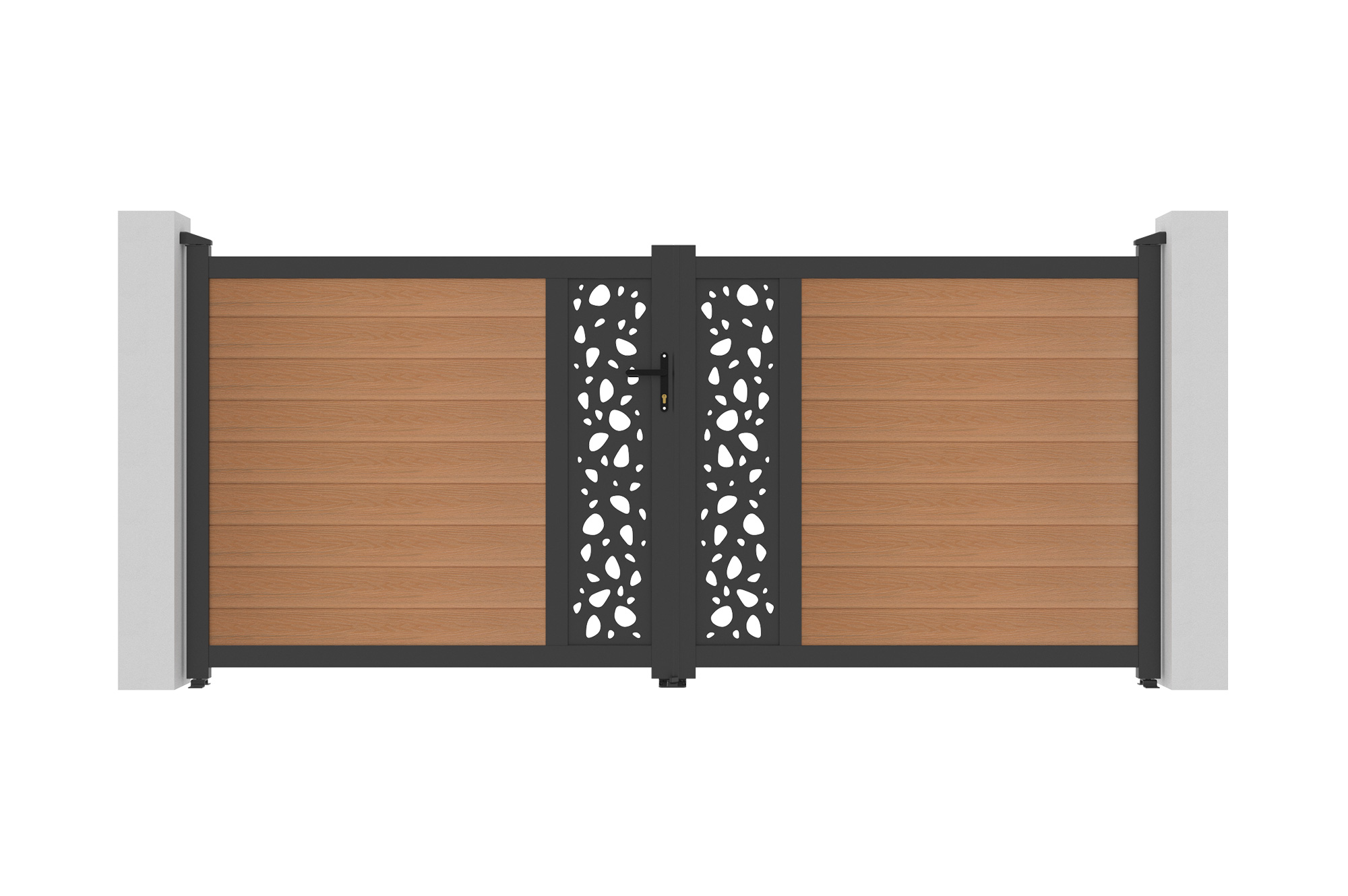

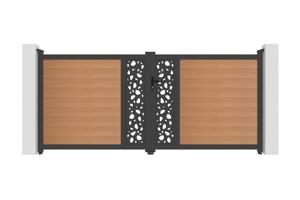

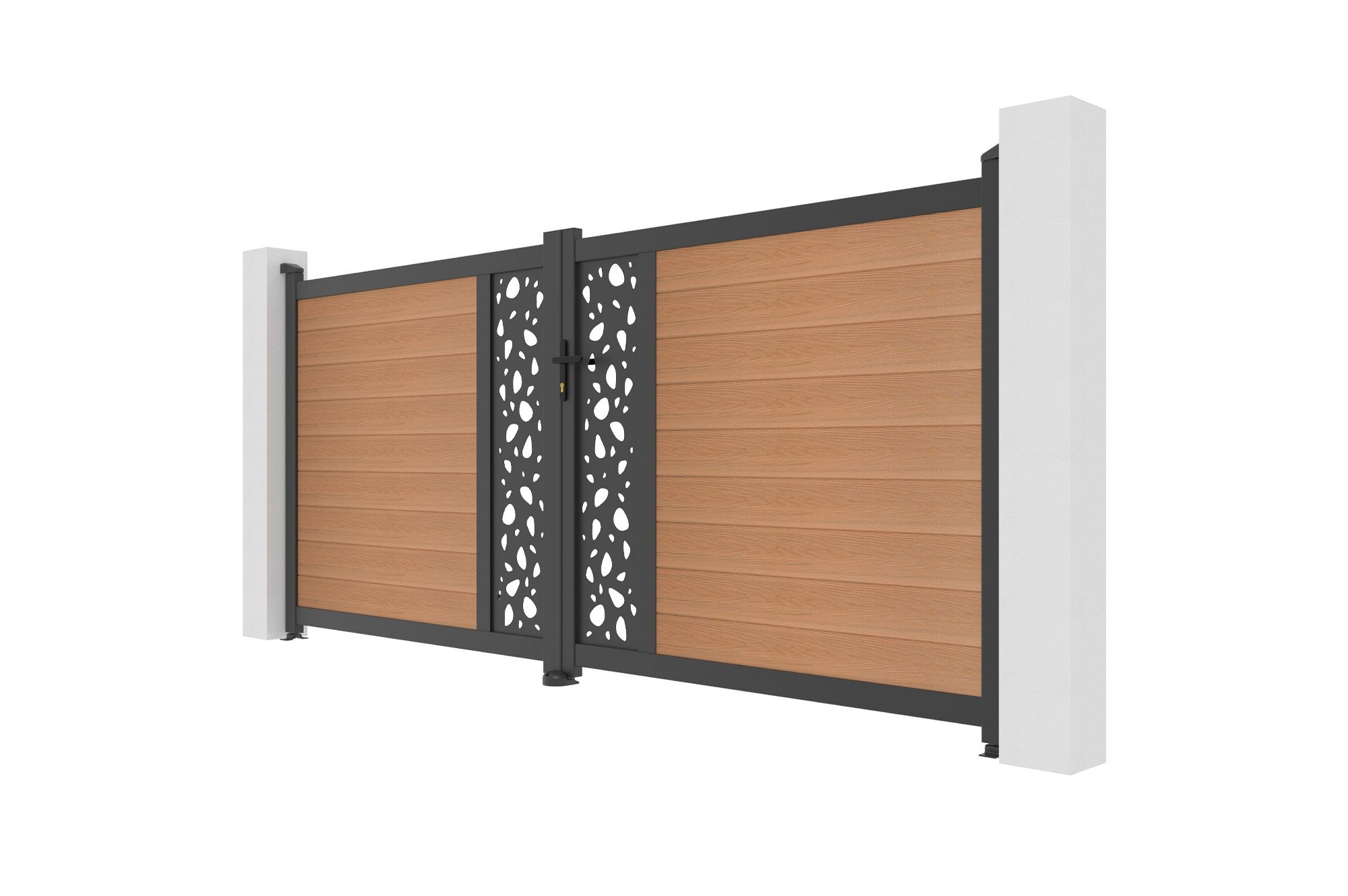

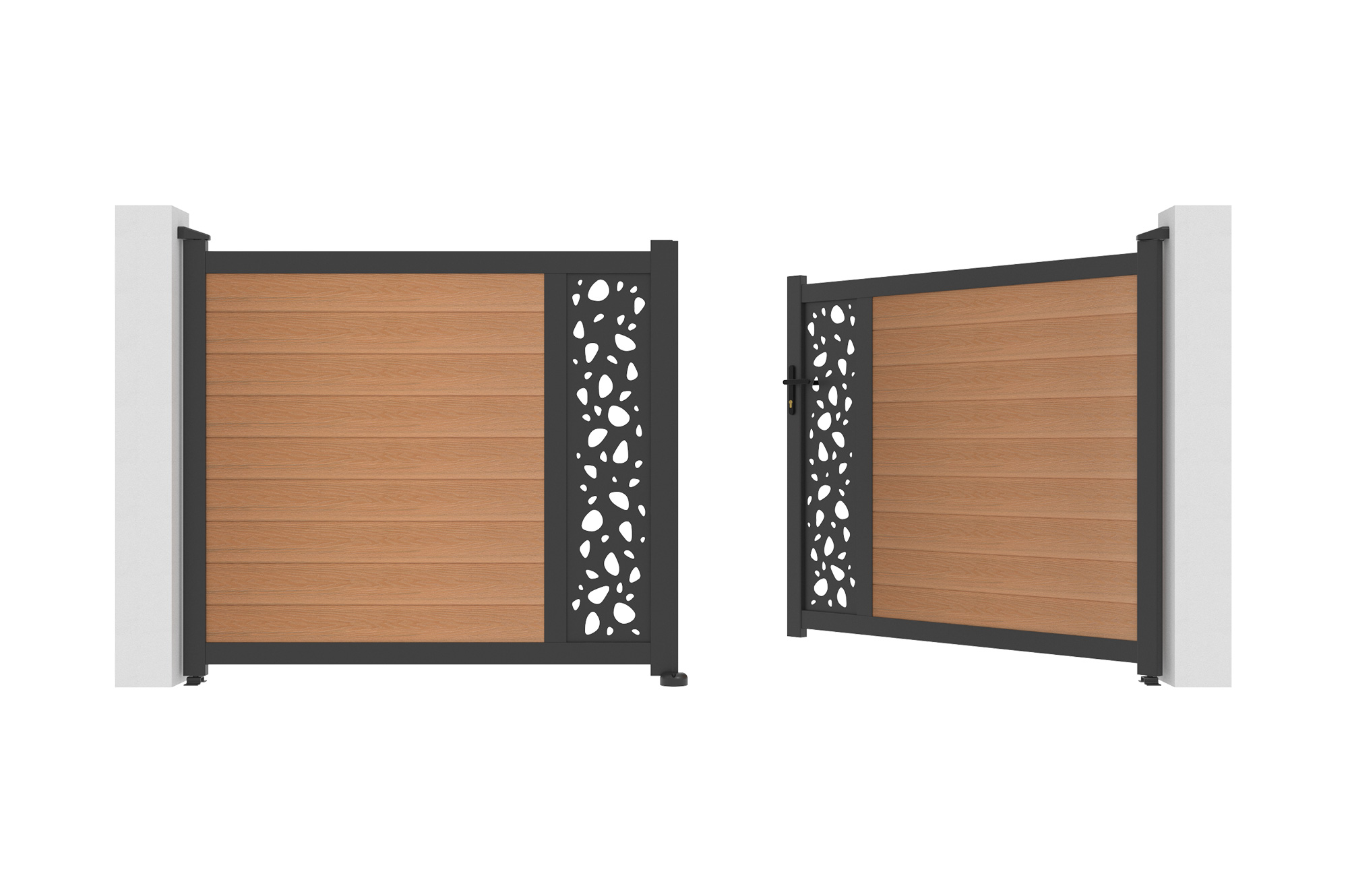

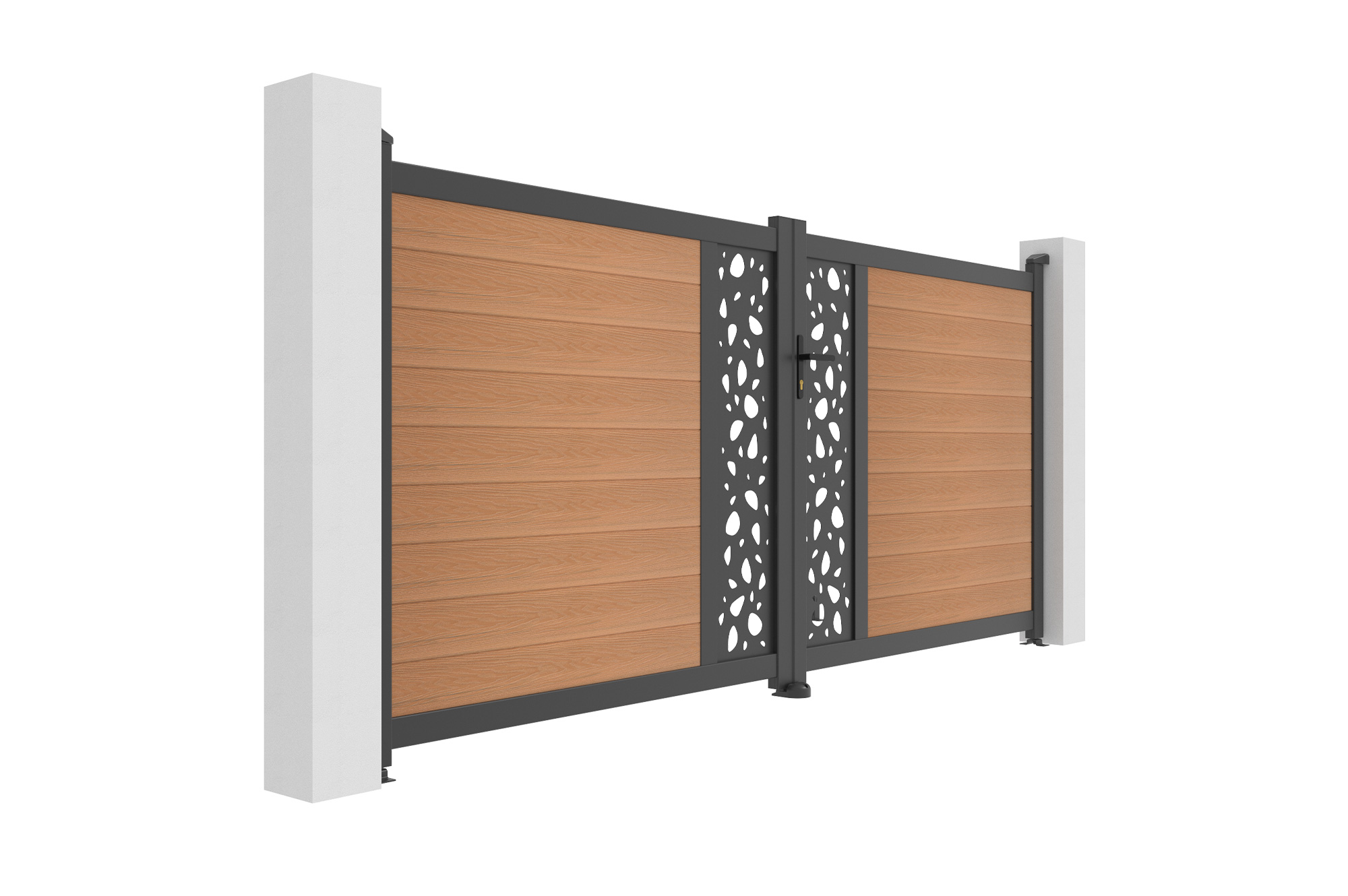

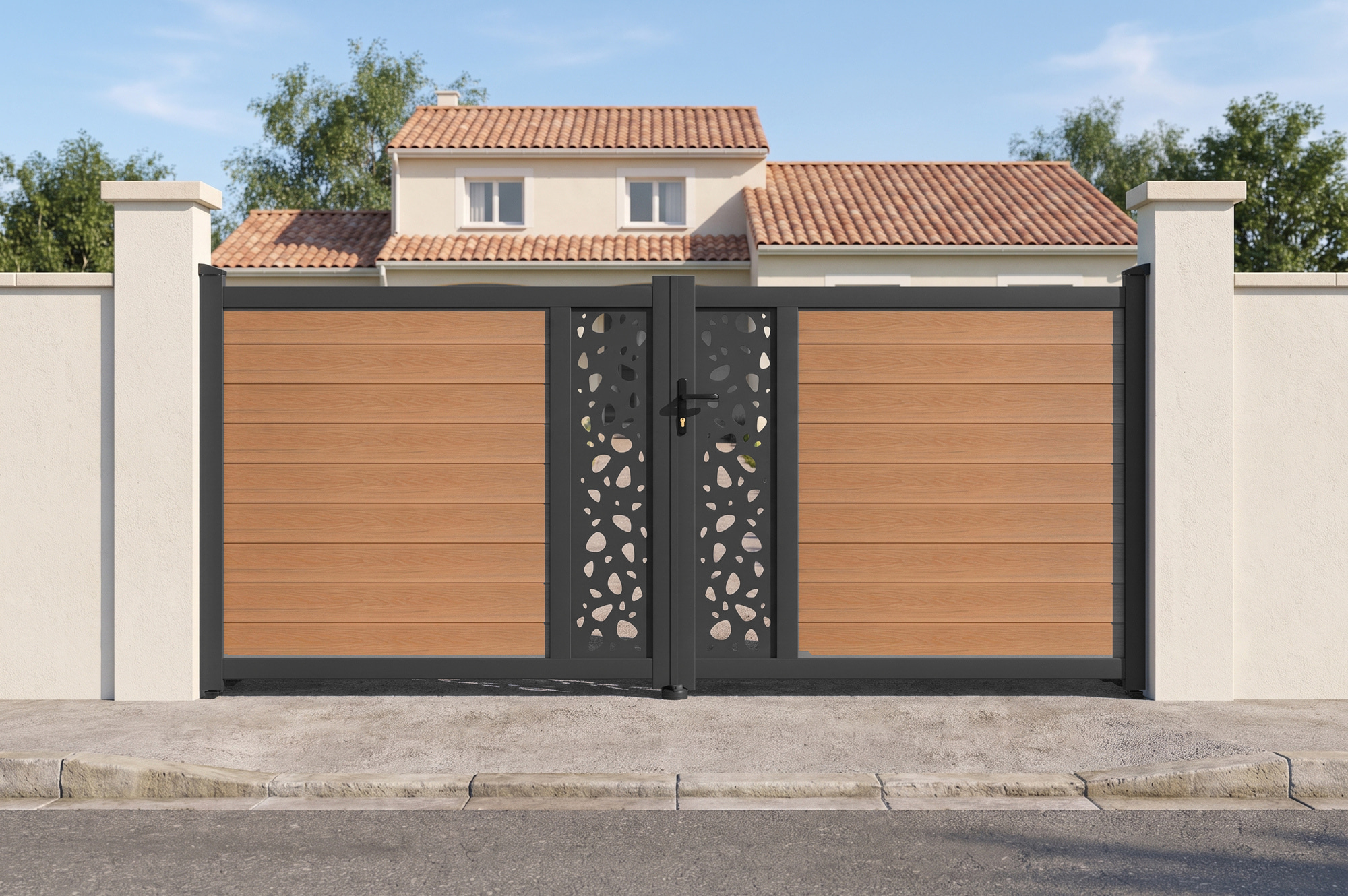

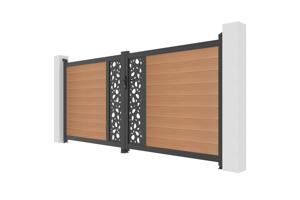

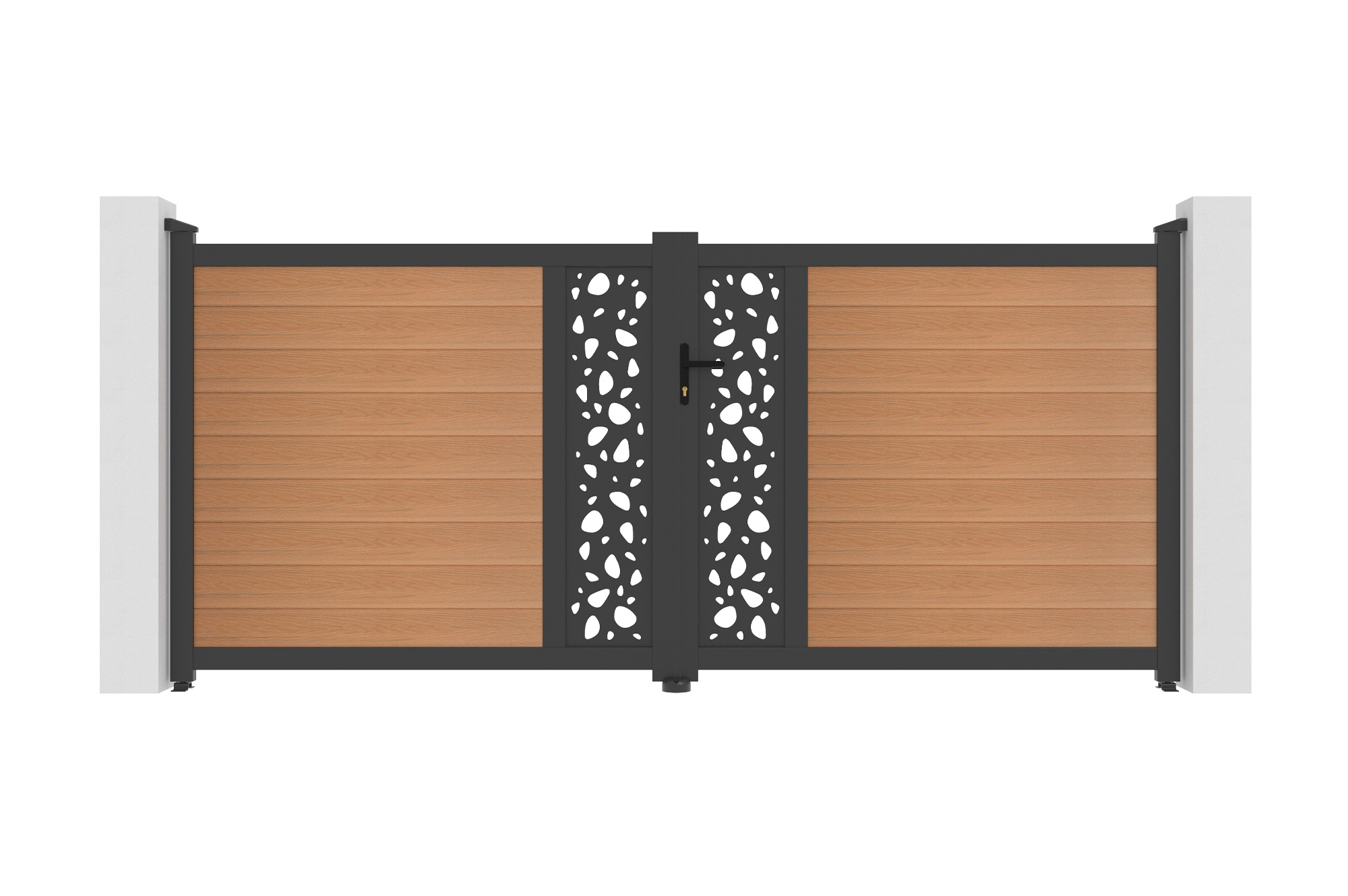

ATHOS SUNNY 3.5m H.160cm teak composite wood swing gate with aluminum frame
851.79 €
Save money! Discover the packs bundled with this product

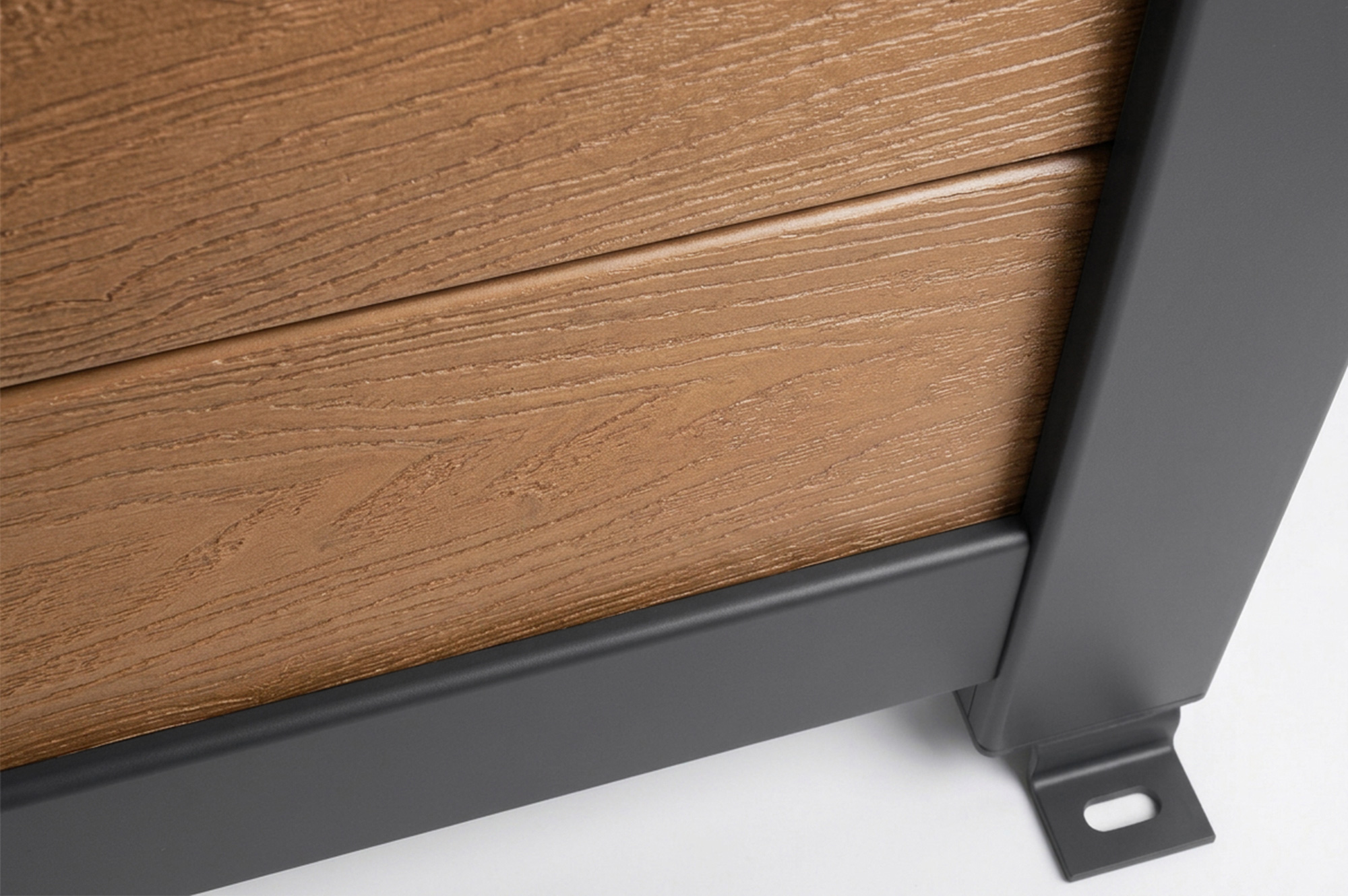

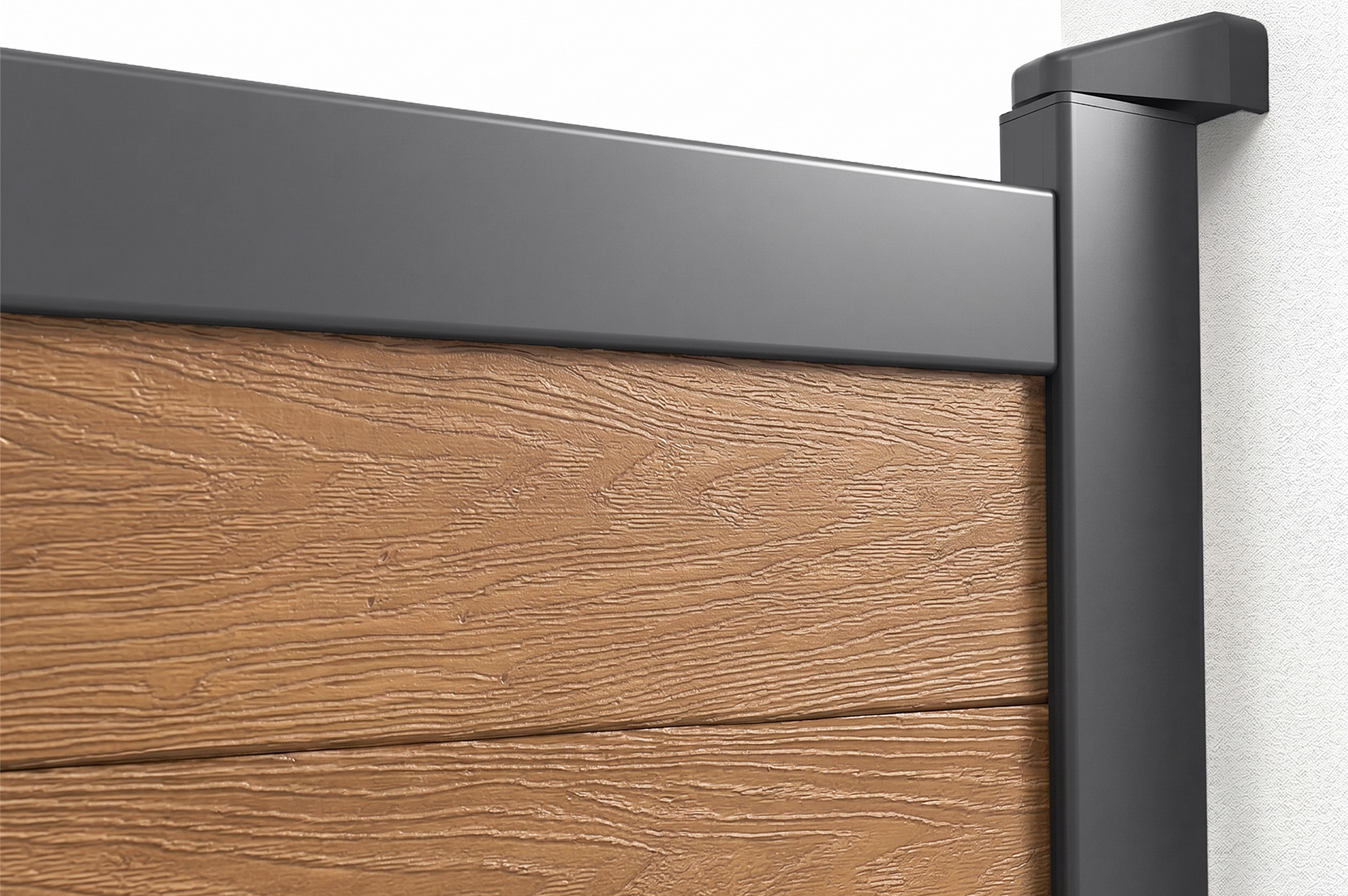

This ATHOS wood-effect composite swing gate forms a solid enclosure designed to protect access and limit outside views. The composite material offers a warm aesthetic without requiring painting or regular maintenance. Supported by a Qualicoat-certified powder-coated aluminum frame, the entire structure gains rigidity, corrosion resistance, and consistency throughout the seasons.

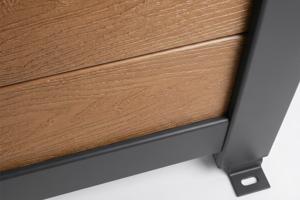

The composite maintains a uniform appearance despite temperature variations and humid conditions. It will not rot or crack like natural wood when exposed to the elements. The aluminum, naturally rust-resistant and protected by powder coating, contributes to the frame's strength and the gate's durability.
Material: Powder-coated aluminum frame (Qualicoat), composite wood infill, and decorative aluminum panels
Color: Teak

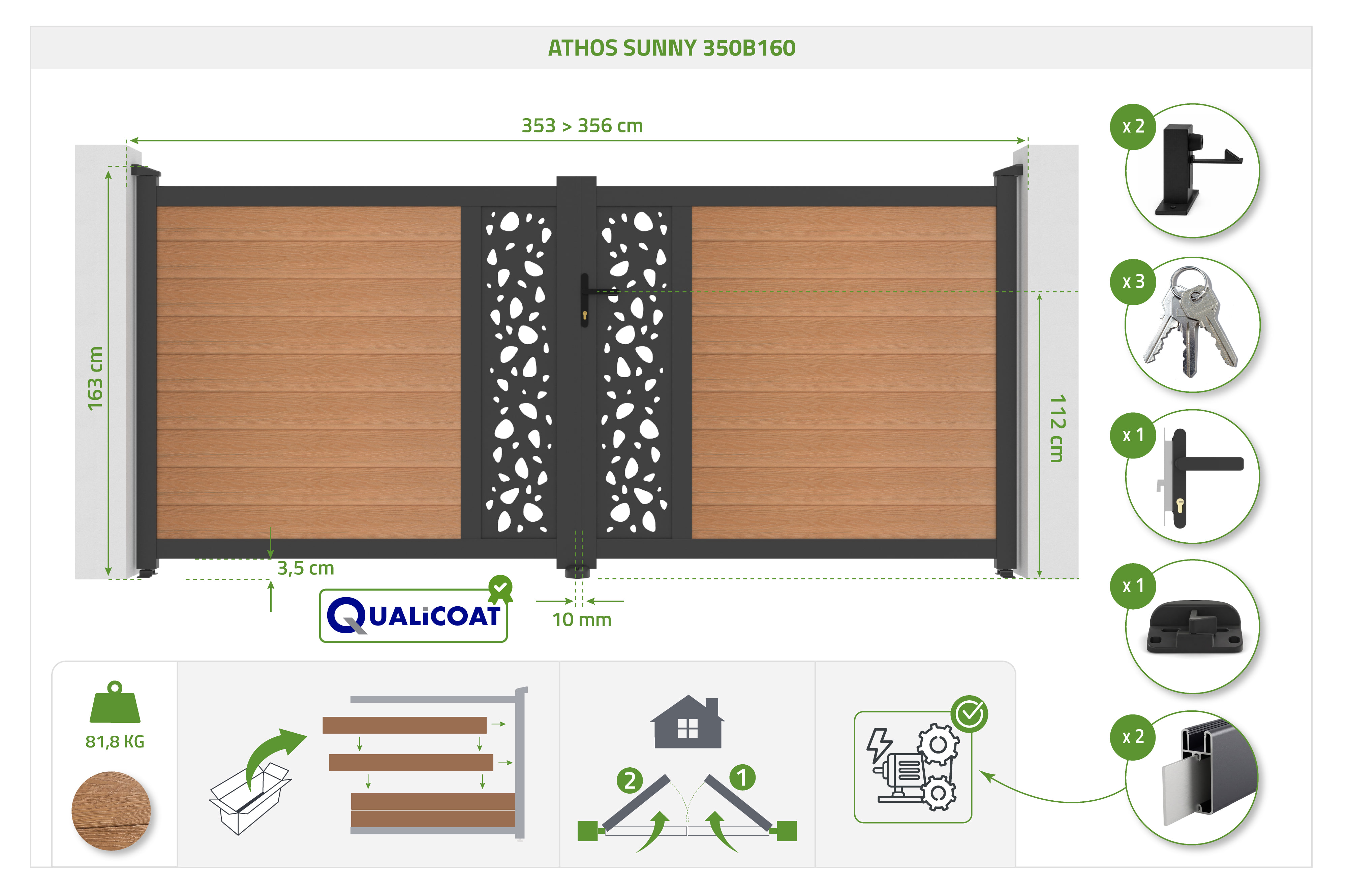

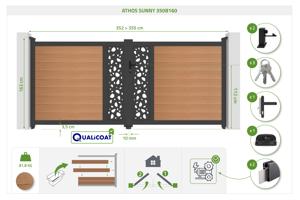

Dimensions: 350 x 155 cm
Minimum post height: 175 cm
Spacing between posts: 353 to 356 cm
Wind resistance: 100 km/h
Net weight: 81.8 kg
- 4 powder-coated aluminum uprights (80 × 45 × 2 mm)
- 4 powder-coated aluminum crossbars (80 × 35 × 2 mm)
- 2 reinforced bottom crossbars for motorization (3 mm thick)
- 2 decorative aluminum plates (3 mm thick)
- 18 composite wood slats (158 × 16 mm, 3.9 mm thick)
- 2 top hinges
- 2 bottom hinges
- 2 side stops
- 1 center stop
- 1 cylinder lock
- 1 black handle
- 3 keys
- Finishing caps
- Screws
The composite swing gate meets the needs of those who appreciate wood but prefer to avoid its drawbacks. The composite material requires no treatment against moisture and is resistant to rot. Its combination with a rigid aluminum frame reduces the risk of warping and ensures overall durability, even with frequent use. This design is particularly well-suited for regular residential use.
To maintain a clean surface, simply wash the composite periodically with a damp cloth or soft brush. Common stains can be removed with soapy water, followed by thorough rinsing. The powder-coated aluminum requires no special treatment; gentle cleaning preserves its Qualicoat finish. In coastal or urban environments, more frequent rinsing helps remove salt and dust.
Clear instructions
Quick and easy assembly
Find all the necessary information about this product in the Technical specifications
Download the instructions
Supplied accessories
Yes
Top cover cap
Yes
Compatible pillar spacing
353-356 cm
Colour
Teck
Finishing
QUALICOAT
Height
163 cm
Minimum pillar height
175 cm
Width
351 cm
Frame material
Aluminium
Main material
Composite wood
Compatible engines
Yes
Opening direction
Towards the house
Opening system
Swing gate
End stop
2
Central stop
Yes
Handle colour
Black
Thickness of the blades
3.9 mm
Stud thickness
2 mm
Operating clearance
30 mm
Blade section
158*16 mm
Amounts Section
80*45 mm
Sleeper Section
80*35 mm
Locking system
Cylinder lock
Assembly time
8 h
Type of lock
Keys (3)
Compatible motorization type
Articulated arm and jacks
Pivoting system
Ball bearing
Stud/rail assembly
Self-drilling screws
Type of filling
half openworked
Sleeper thickness
2 mm
Available in sliding
No
Eligibility Extension of warranty 10 years
No
Eligibility Extended warranty 5 years
No
Warranty
2 an(s)
Handle material
Aluminum
Assembly instructions
Yes
Number of lower hinges
2
Number of upper hinges
2
Recommended number of persons for assembly
2
Wind resistance
100 km/h
All our products are delivered in kit form and to be assembled by you.
We have designed and imagined our products so that they are easy to assemble, and your customer experience is pleasant.
We have provided you with clear assembly instructions that you can download.
All the accessories necessary for the installation of your portal are provided to you, and everything that is included in our portals is specified in the technical characteristics of the product as well as in the description.
You can find all this information on each of our product sheets through these different tabs:
If, upon receipt and assembly of your products, you have any questions about the installation, you can always contact us through the Casanoov contact form.
For orders where all products are advertised as "In stock", we do our best to prepare your order in less than 24 hours.
Delivery times are communicated to you on each of our product sheets.
For orders with products "in reservation", preparation and delivery take place at the time of the effective return to stock.
We offer you in full consciousness a longer delivery time to allow you to receive your entire order in a grouped manner.
You are advised to place two different orders if you wish to receive the products in stock more quickly and place a second order with the products for which we are awaiting stock.
Our delivery costs are free, so this will have no impact on your final cost.
You can contact us via the contact form, section "Question about a product". We will do our utmost to provide you with all the help you need and to answer your questions about our articles.
A Question/Answer system will be set up very quickly on each of our products so that your questions can also help the Casanoov community in their choice!
All our products have a 2-year commercial warranty.
