- Sturdy aluminum frame
- Durable composite filling
- Pebble pattern for a unique entrance
- Brown color

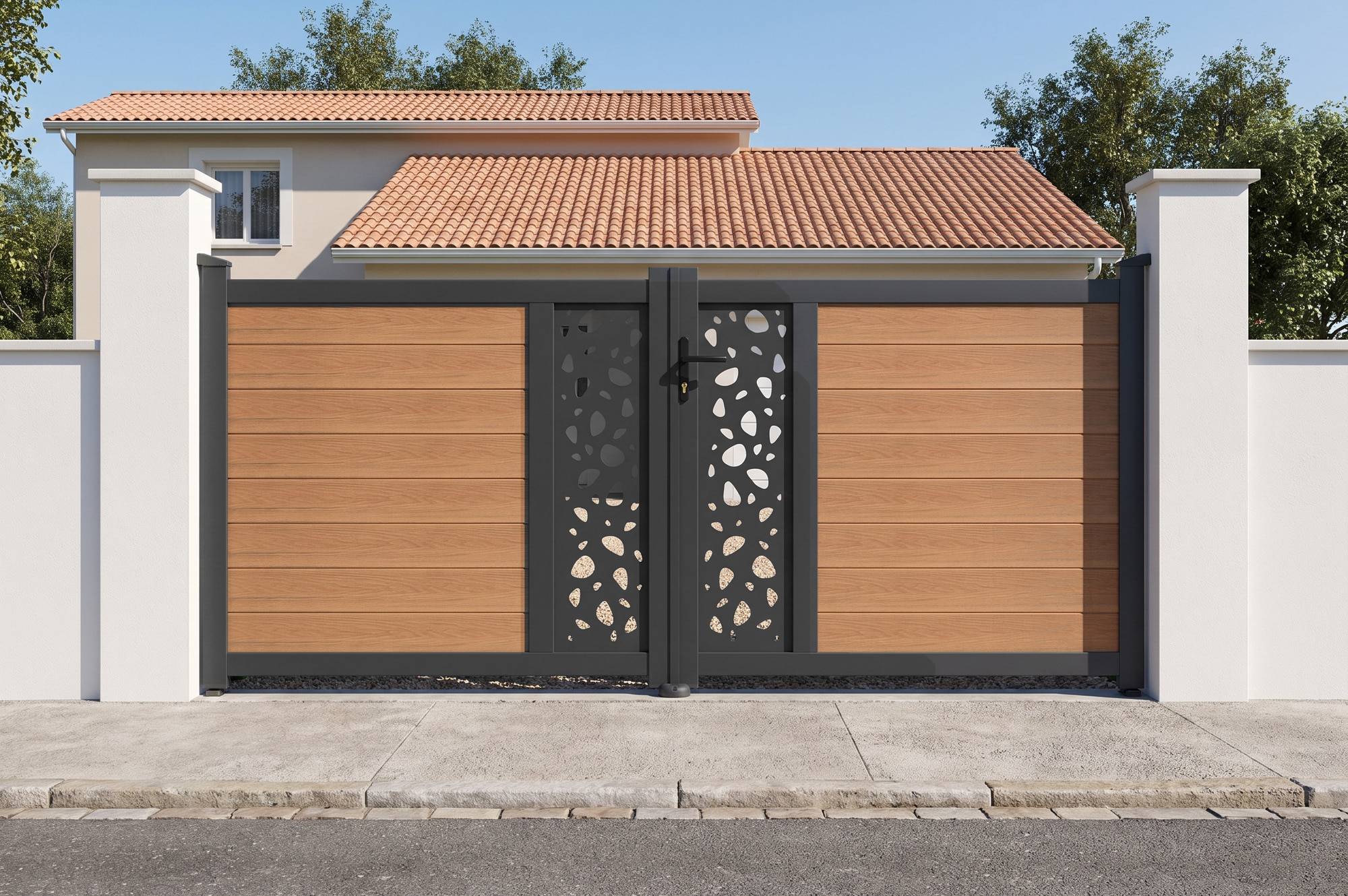

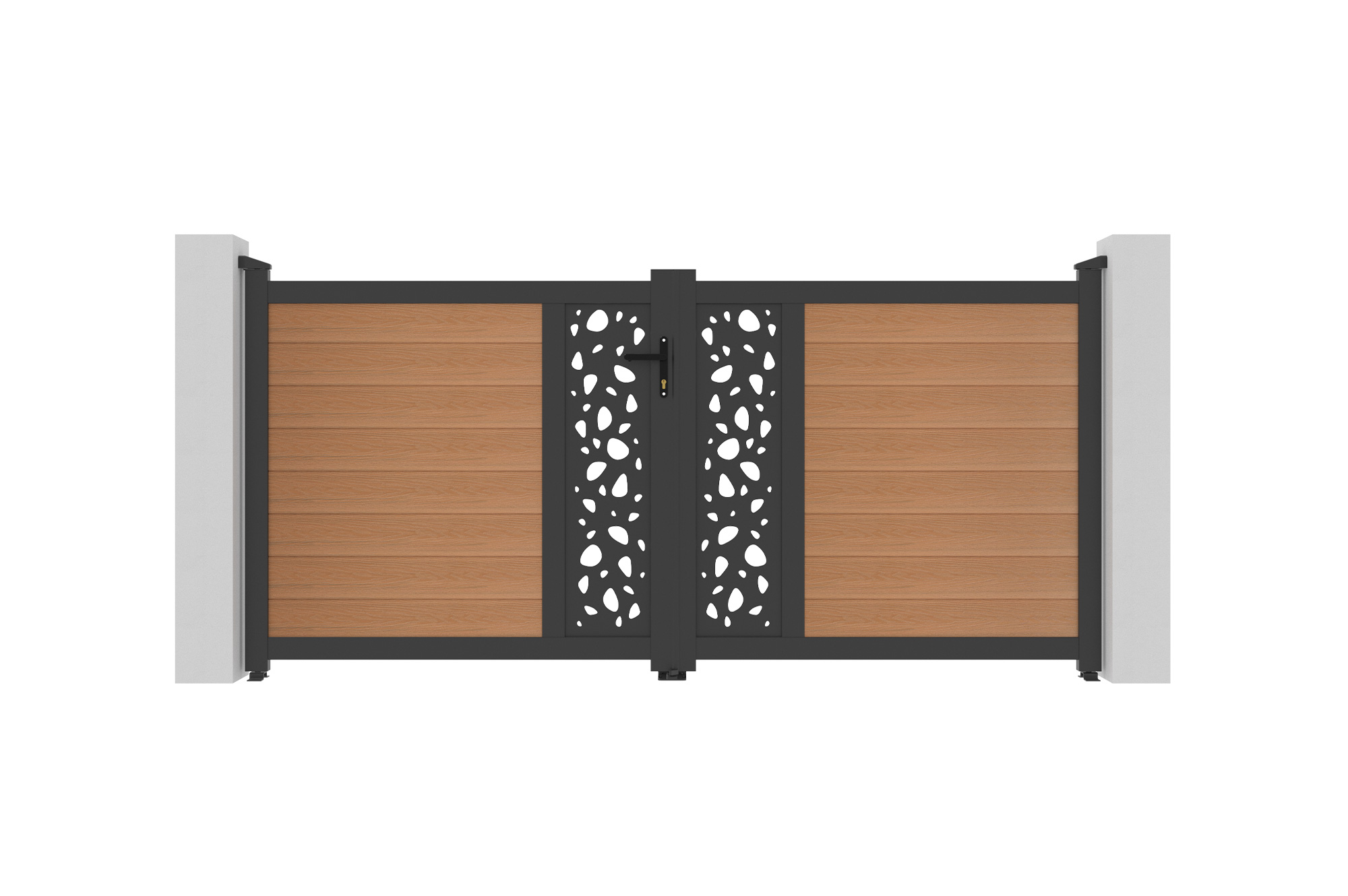

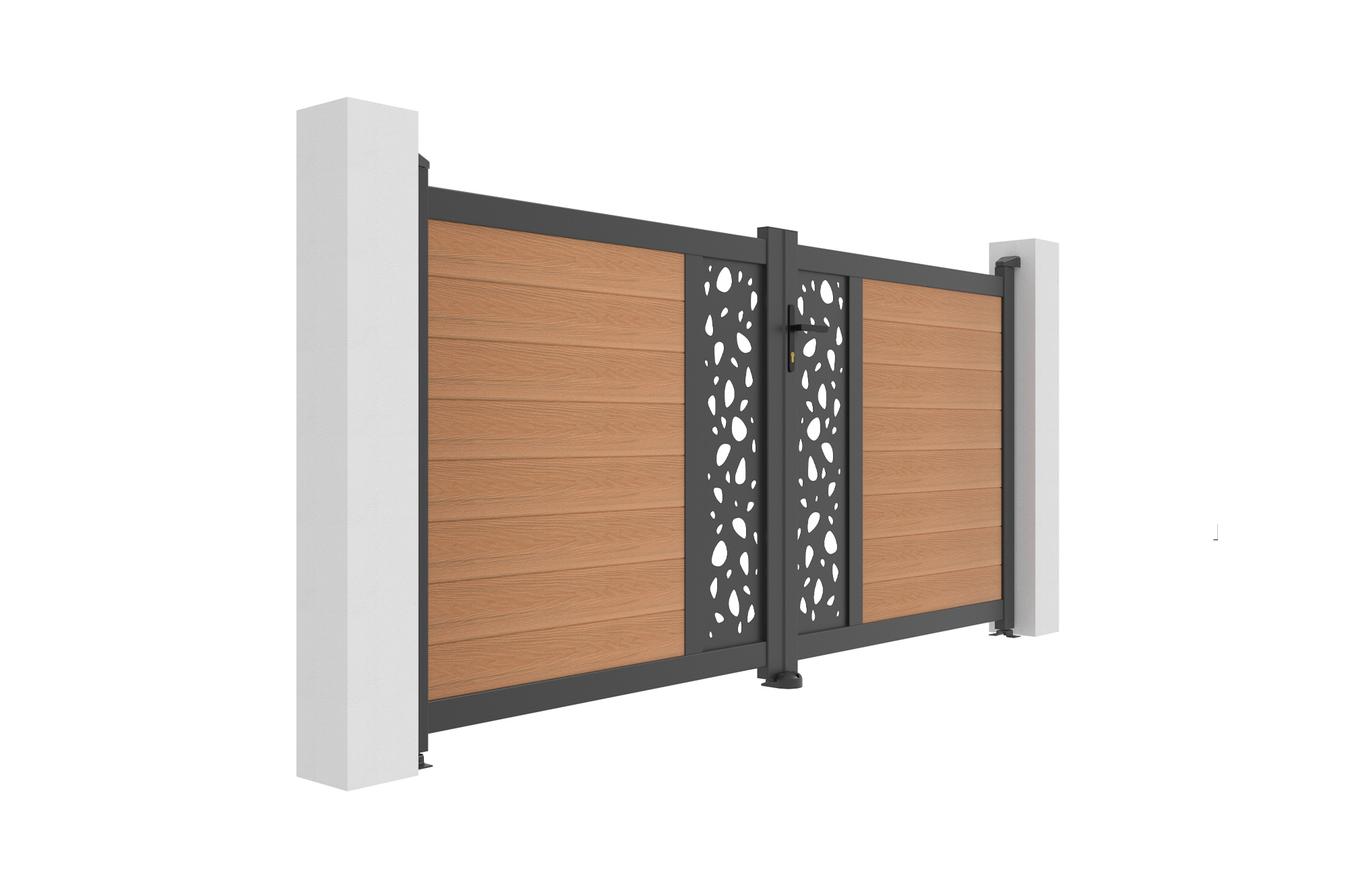

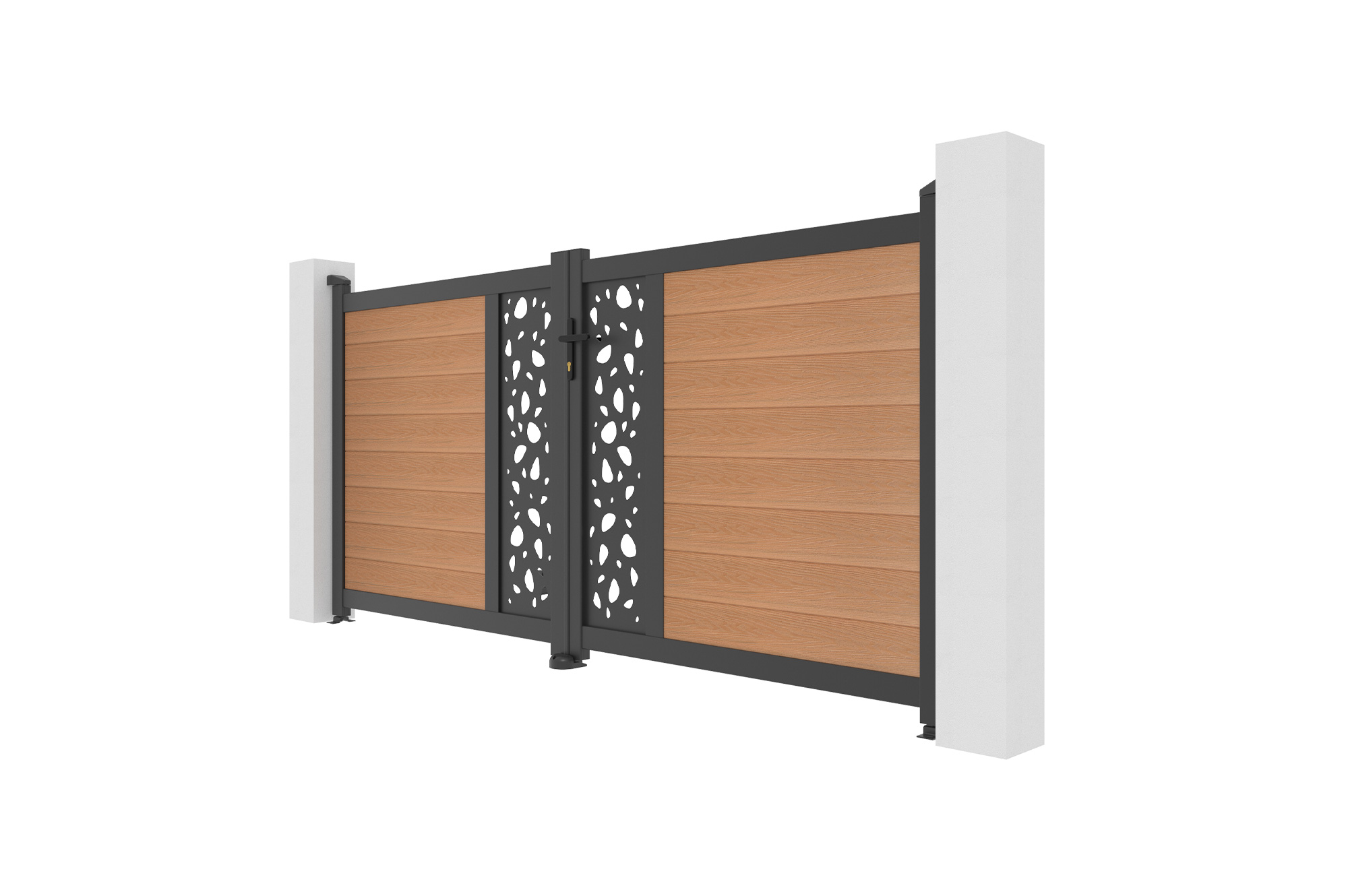

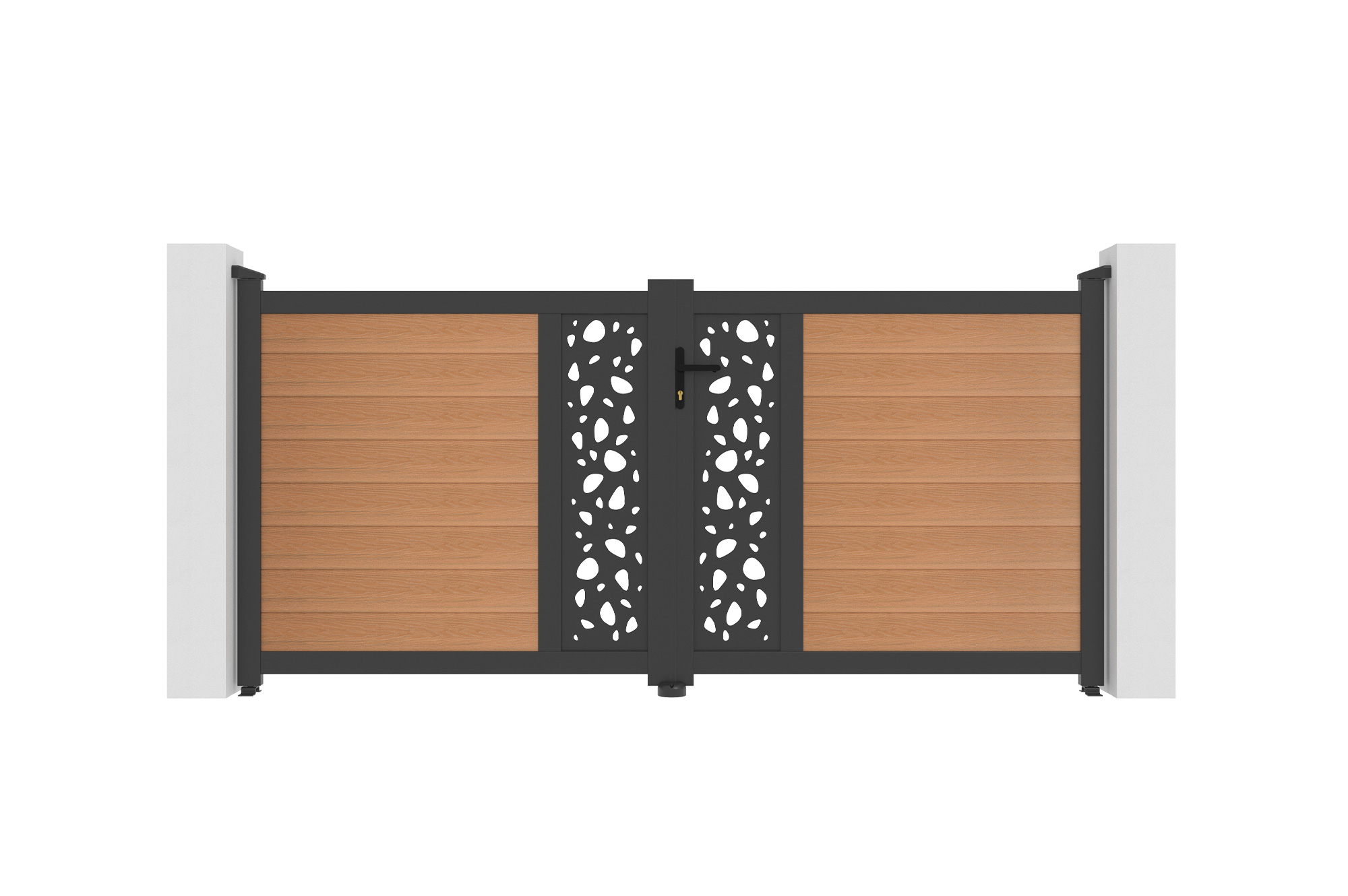

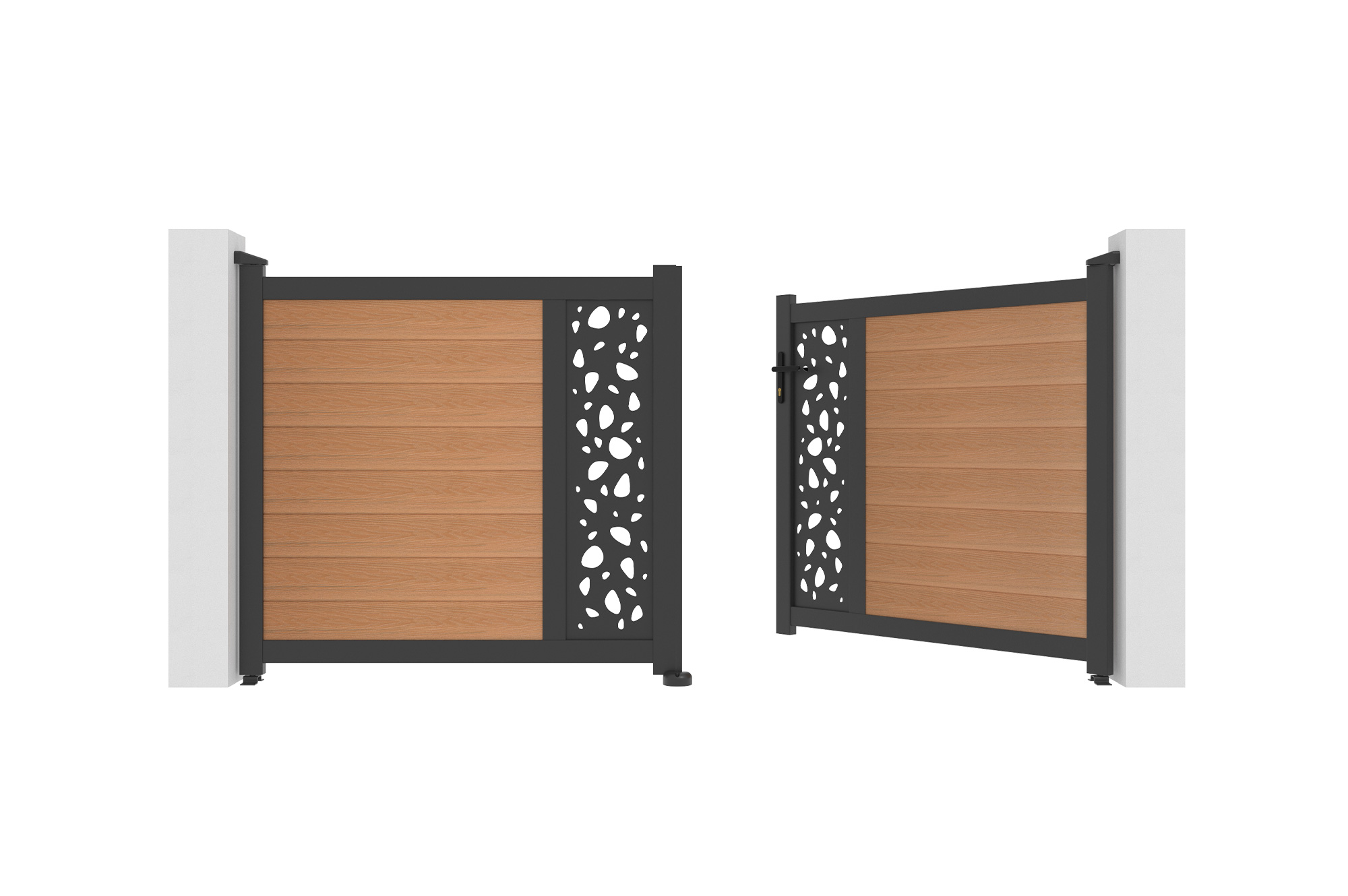

ATHOS SUNNY 3m H.140cm teak swing gate with aluminum frame, made of composite wood, with aluminum frame
KIT-000831
724.30 €TVA 10% ✓ excl. VAT
Guarantee: 2 years
- Sturdy aluminum frame
- Durable composite filling
- Pebble pattern for a unique entrance
- Brown color
Secure payment
Delivery within 5 days
Free shipping
ATHOS SUNNY 3m H.140cm teak swing gate with aluminum frame, made of composite wood, with aluminum frame
724.30 €
Discount Pack
Save money! Discover the packs bundled with this product
Description
Designed to secure the entrance while preserving the view from the street, this ATHOS composite swing gate combines solid and patterned slats with a rigid aluminum frame. The choice of composite material allows for a teak-like appearance, with warm wood tones, without the usual drawbacks of real wood. The powder-coated structure, Qualicoat certified, provides lasting protection against corrosion and weathering.

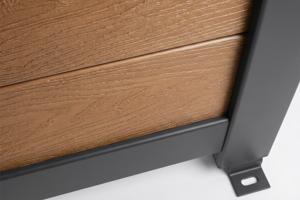

The nature of the composite significantly reduces the effects of water and temperature fluctuations on the infill. It maintains a clean surface without sanding, treatment, or refinishing. Around these slats, the powder-coated aluminum forms a strong and durable frame. Its Qualicoat finish offers controlled protection, essential for preserving the product's strength and aesthetic appeal outdoors.
Material: Powder-coated aluminum frame (Qualicoat), composite wood infill, and decorative aluminum panels
Color: Teak
Dimensions: 300 x 140 cm
Minimum post height: 160 cm
Spacing between posts: 303 to 306 cm
Wind resistance: 100 km/h
Net weight: 65.1 kg
- 4 powder-coated aluminum uprights (80 × 45 × 2 mm)
- 4 powder-coated aluminum crossbars (80 × 35 × 2 mm)
- 2 reinforced bottom crossbars for motorization (3 mm thick)
- 2 decorative aluminum plates (3 mm thick)
- 16 composite wood slats (158 × 16 mm, 3.9 mm thick)
- 2 top hinges
- 2 bottom hinges
- 2 side stops
- 1 center stop
- 1 cylinder lock
- 1 black handle
- 3 keys
- Finishing caps
- Screws

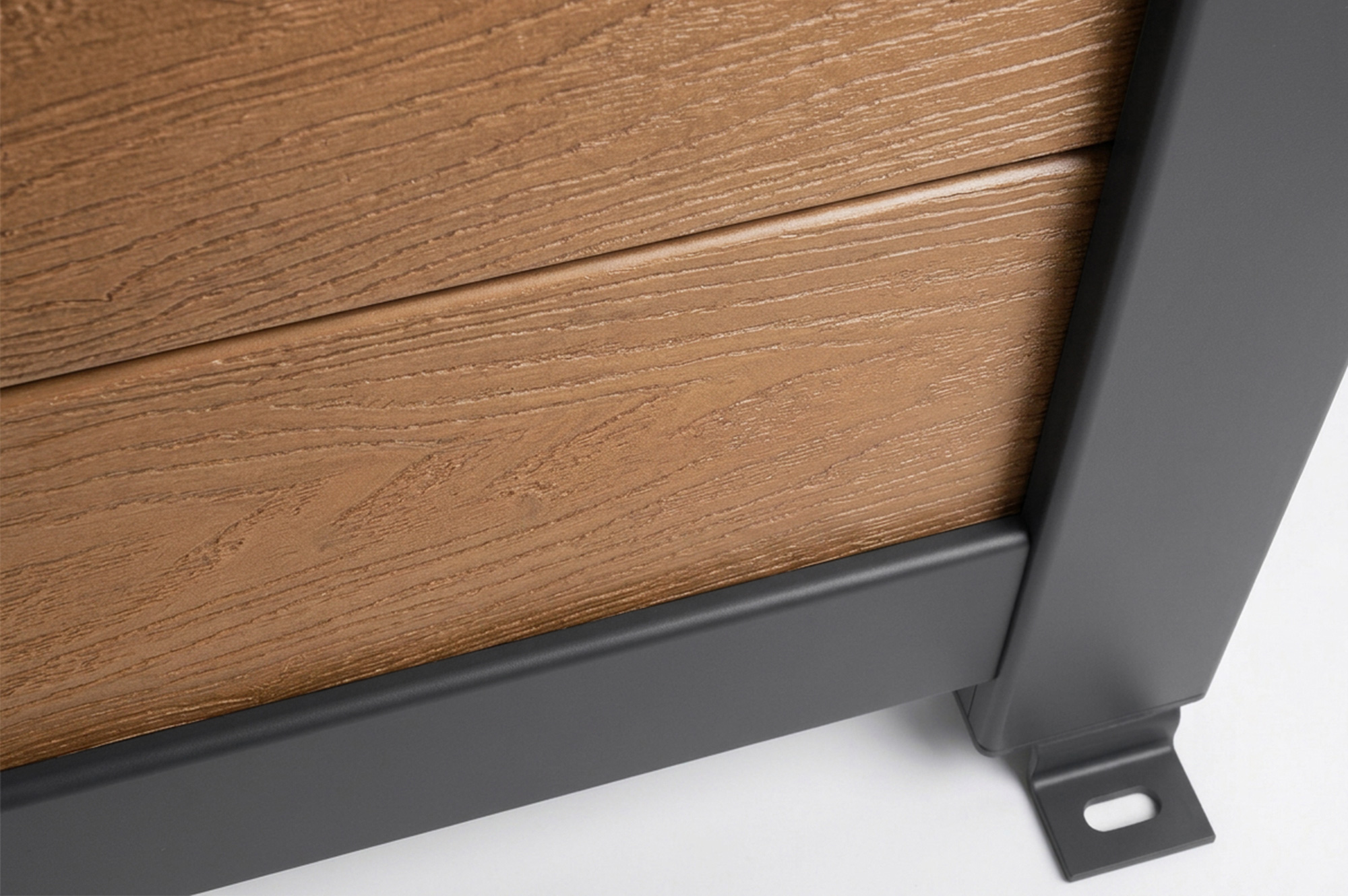

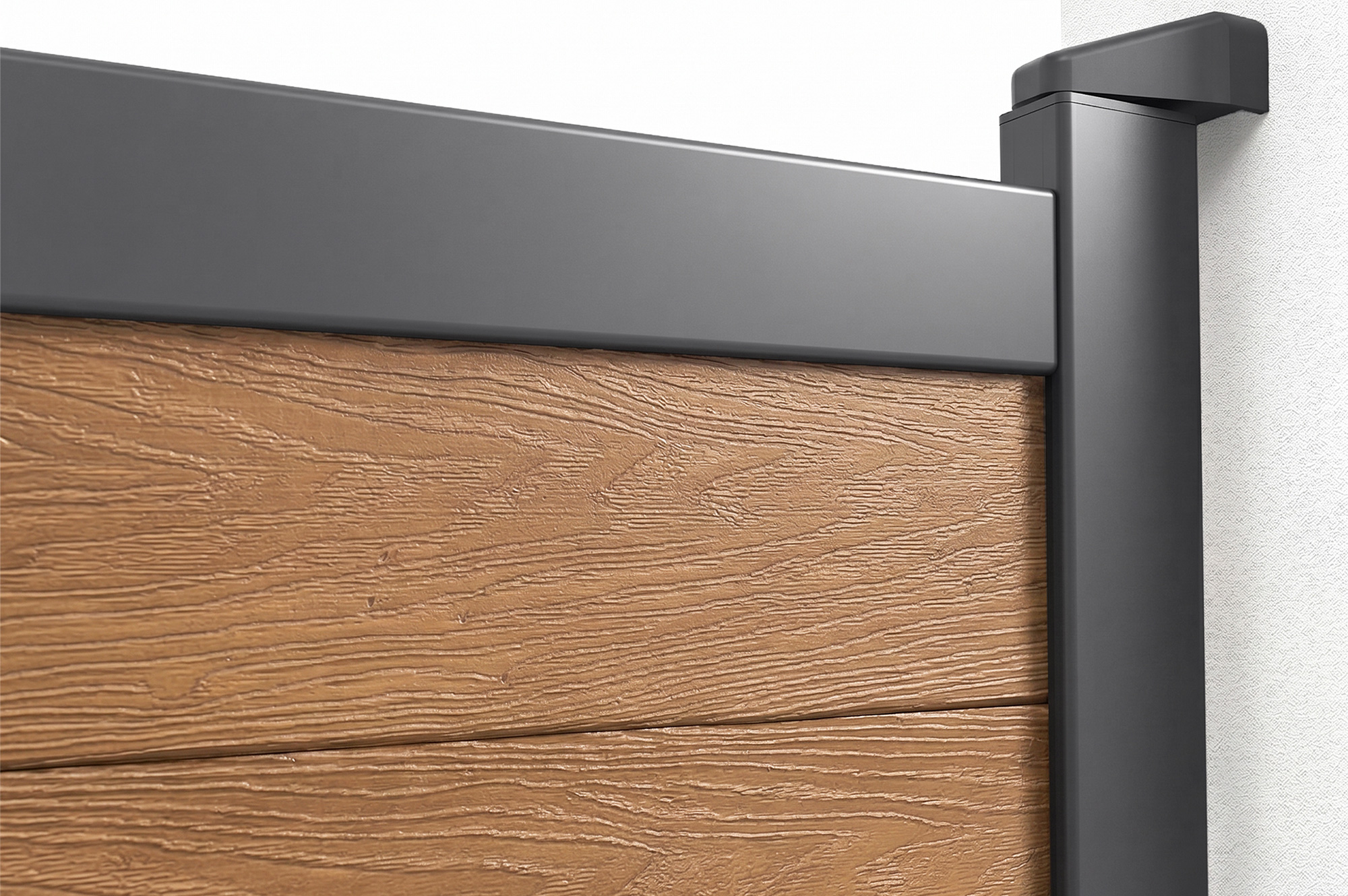

Stability is one of the main advantages of a composite swing gate. The composite slats absorb very little moisture and limit the movement that can disrupt the alignment of a wooden structure. Their appearance remains warm and inviting, without the risk of rot. The powder-coated aluminum frame complements this durability with its rigidity and resistance to external elements. The result is ideal for projects where the material's consistency is as important as its appearance.
The wood-effect finish is maintained with simple, regular upkeep. Washing with a low-pressure washer, using water and a mild household cleaner, removes most stains. The aluminum powder coating can be cleaned at the same time. No wood conditioner or restorer is required. In coastal or urban environments, more frequent rinsing helps remove salt and dust.
For this product
Clear instructions
Quick and easy assembly
Find all the necessary information about this product in the Technical specifications

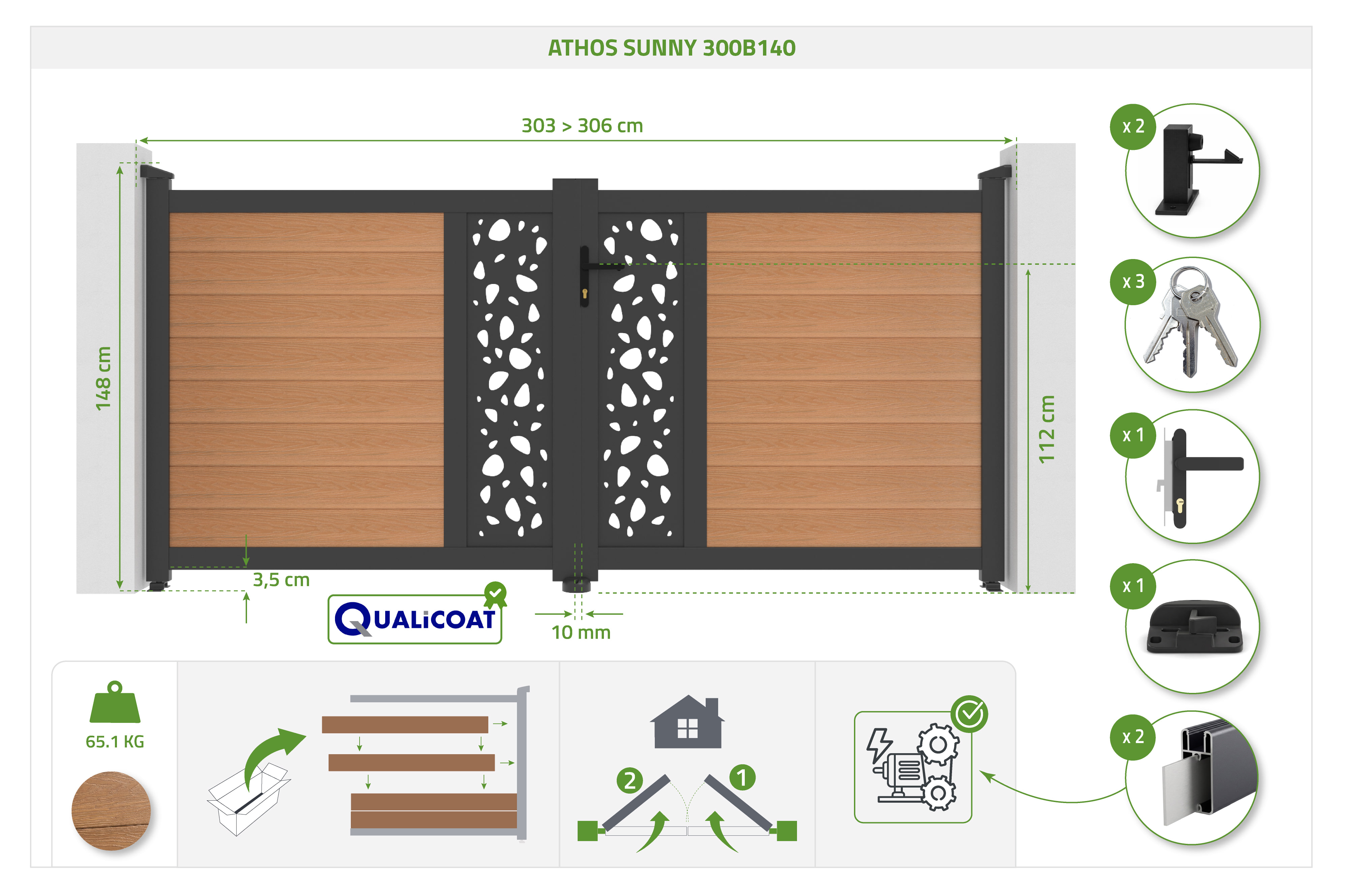

Download the instructionsTechnical diagram
Assembly instructions
Technical data
-
Supplied accessories
Yes
-
Top cover cap
Yes
-
Finishing
QUALICOAT
-
Compatible pillar spacing
303-306 cm
-
Colour
Teck
-
Main material
Composite wood
-
Pivoting system
Ball bearing
-
Stud/rail assembly
Self-drilling screws
-
Handle colour
Black
-
Thickness of the blades
3.9 mm
-
Stud thickness
2 mm
-
Sleeper thickness
2 mm
-
Height
148 cm
-
Minimum pillar height
160 cm
-
Operating clearance
30 mm
-
Width
301 cm
-
Frame material
Aluminium
-
Blade section
158*16 mm
-
Amounts Section
80*45 mm
-
Sleeper Section
80*35 mm
-
Opening direction
Towards the house
-
Locking system
Cylinder lock
-
Compatible motorization type
Articulated arm and jacks
-
Type of lock
Keys (3)
-
End stop
2
-
Assembly instructions
Yes
-
Number of lower hinges
2
-
Number of upper hinges
2
-
Recommended number of persons for assembly
2
-
Wind resistance
100 km/h
-
Assembly time
8 h
-
Type of filling
half openworked
-
Central stop
Yes
-
Available in sliding
No
-
Eligibility Extension of warranty 10 years
No
-
Eligibility Extended warranty 5 years
No
-
Warranty
2 an(s)
-
Handle material
Aluminum
-
Compatible engines
Yes
-
Opening system
Swing gate
