Stud thickness
1.5 mm
Sleeper Section
70*30 mm
Amounts Section
78*47 mm
RAL
7016
Pattern / Design
SUNNY
Thickness of the blades
1.2 mm
Operating clearance
26 mm
Compatible motorization type
Sliding
Finishing
Sand mat
Stud/rail assembly
Self-drilling screws
Stud thickness
1.5 mm
Sleeper Section
70*30 mm
Amounts Section
78*47 mm
RAL
7016
Pattern / Design
SUNNY
Thickness of the blades
1.2 mm
Operating clearance
26 mm
Compatible motorization type
Sliding
Finishing
Sand mat
Stud/rail assembly
Self-drilling screws
Handle material
Aluminium
Assembly time
8 h
Supplied accessories
Yes
Assembly instructions
Yes
Height
181 cm
Recommended number of persons for assembly
2
Opening system
Sliding
Required pillar height
190 cm
Compatible engines
Yes
Warranty
2 an(s)
Sleeper thickness
1.2 mm
Eligibility Extended warranty 5 years
No
Rod assembly
Self-drilling screws
Locking system
Barrel lock
Guide system
Upper guide with 4 nylon olives
Width
398 cm
Required discharge length
4 m
Blade width
155 mm
Length of the tail of the sliding gate
25 cm
Type of lock
5 keys
Length of steel rail
8 m
Number of wheels
4
Eligibility Extension of warranty 10 years
No
Type of filling
half openworked
Main material
Aluminium
Width between pillars
398 cm
Exists by beating
Yes
Handle colour
Black
Colour
Charcoal grey
Wind resistance
55 km/h
Frame material
Aluminium
Opening direction
left to right / right to left
Weight of package No.1
26.7 kg
Weight of package No.2
29.0 kg
Weight of package No.3
27.0 kg
Weight of package No.4
7.0 kg

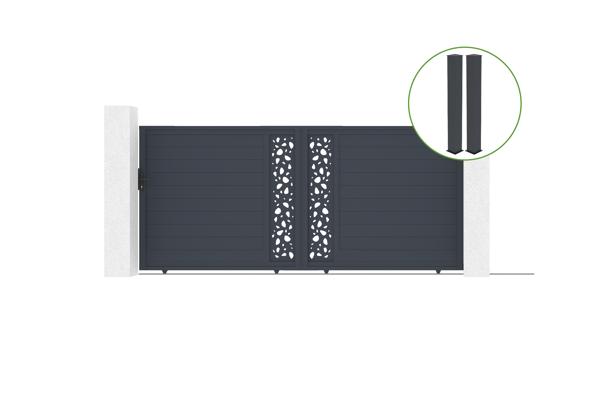

The SUNNY sliding driveway gate with its graphic design will bring modernity and elegance to your entrance thanks to its unique decorative panels with their "Pebbles" style patterns
Description : Modern sliding gate with vertical decorative panels
Material: Aluminium
Colour: Anthracite grey (RAL 7016)
Type of pattern : "Pebbles"
Dimensions : Width 390 cm x Height 178 cm
Total width required with clearance : 832 cm
Minimum height of pillars: 190 cm
Inspired and designed in France
This do-it-yourself modern sliding gate kit with laser design contains ::
- 18 powder coated slats (Height 16 cm)
- 2 reinforced powder coated slats for motorisation (Height 16 cm)
- 2 decorative aluminium panels with "Pebbles" pattern (Thickness 20/100)
- 1 top guide with 4 nylon wheels
- 8m aluminium guide rail
- 4 steel wheels
- 1 closes strike box
- 1 limit stop
- 1 sash lock
- 1 double handles (Black colour)
- Set of 5 keys
- Finishing caps
- Screws and bolts

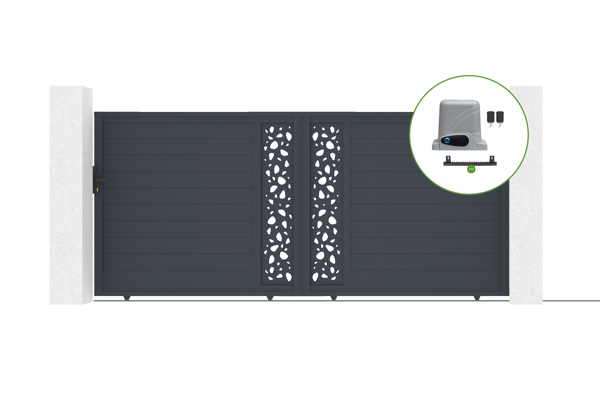

If you wish to motorise your sliding gate, Casanoov suggests packs in the "Sliding Gate" category
You will find promotional packs offering you a set consisting of a sliding driveway gate of your choice accompanied by the appropriate automation.
In case your installation requires pillars, promotional packages are also available containing a sliding driveway gate of your choice, together with two aluminium posts to match the chosen entrance gate.
FYI : The minimum pillar height for this gate is 190cm
The LIFE model is also available in other sizes and colours.
For a harmonious exterior, we propose matching swing gates, garden gates and fences.
To personalize your sliding gate, you can change the direction or position of the decorative plates.
Driveway gate delivered in kit form.
Clear instructions, quick and easy assembly.
You will find all the necessary information about this product in the technical data.
It is technically possible to install your gate with an opening from the right to the left.
You will find all the information you need to change the opening direction in our installation instructions.
Our installation instructions for sliding gates have been designed to offer you two different installation methods depending on the chosen opening direction: from left to right or from right to left.
For further information, please contact our customer service via our contact form.
Download the assembly instructions (PDF)
